Salome-Meca installer

Please note that this installer is not supported by our team at the moment. You could expect some issues such as difficulties when saving.

This short post is about a new packaging for Salome Meca for Windows installer, kindly provided by Kim Ravn-Jensen (thanks Kim!) working at Simxon. Please contact Kim if you should experience any problem (or simply to say thanks if everything goes well 😉 )

You can get the executable file from this link:

Download Salome-Meca 2018 win64 (exe)

MD5: 3b2b50771a31cfd493261bcaed11ac6cSize: 925904994

After downloading, you only have to run it to get to the first screen:

unnamed

Then you can skip through the information screen…

unnamed (1)

… all the way to the installation path choice (you can use the default or change it as you wish)

unnamed (2)

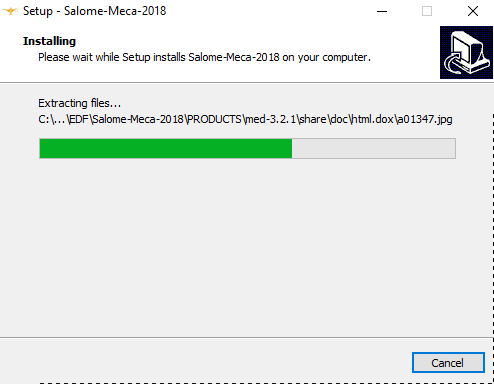

The installation should then start and a progress bar will show you where you are (this might take a little since Salome-Meca is quite a big product):

unnamed (3)

As soon as the installation completes, you should get a new item in your Windows applications:

unnamed (4)

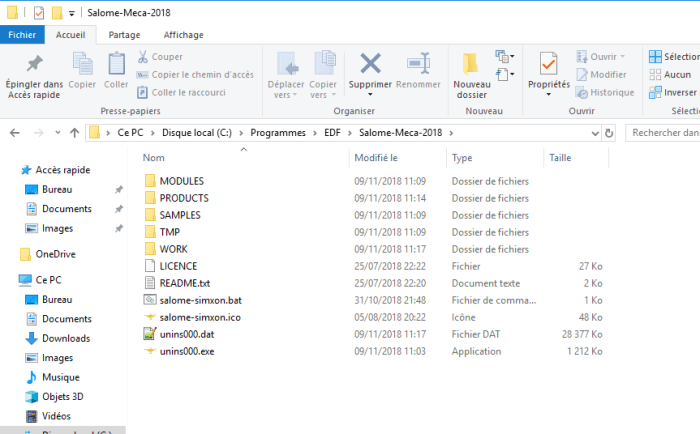

In the installation folder, in case you want to check it, you should expect this content:

unnamed (5).png

Of course, you can also uninstall it (it might leave an empty folder behind that you can delete yourself):

unnamed (6).png

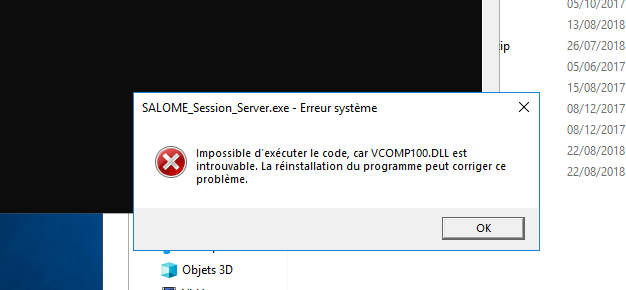

One might encounter some unexpected message if the Visual Studio Runtimes are not yet installed (you may fix this by installing the runtimes before running again the installer, please read “I got a side by side error or a missing dll error, what can I do?” in our FAQ page)

unnamed (7).png

In case you are still having unexpected issues, the best thing to do is probably try to contact Kim at Simxon.

Have fun!

5 thoughts on “Salome-Meca installer

  1. ciao Luca,
    dopo l’installazione di SM2018 inizio seguendo l’esempio “beginning with AsterStudy”, ma al momento di attivare il modulo AsterStudy e selezionando il pulsante “new” il sistema dice che il modulo non è presente.

    Se invece apro “Geometry” riesco a vedere i modelli di esempio.

    Devo per caso scaricare code_aster? Mi sembrava di aver letto che nella suite SM2018 fosse tutto compreso.

    Ti faccio presente che ho installato Microsoft Visual C++ 2008 SP1 Redistributable Package (x64).

    Tra poco provero a reinstallare…

    Like

    1. Ciao Amedeo,
      il modulo è incluso, se non parte c’è qualche problema nell’installazione (vedi voce “AsterStudy module does not start “Failed to activate module AsterStudy”” in https://code-aster-windows.com/faq/). Se hai problemi prova per cortesia con l’installazione dall’archivio “zip” e non con quella eseguibile “exe” : abbiamo incontrato problemi di recente. Come suggerisce la nota, controlla per prima cosa di evitare i caratteri speciali (come per esempio ^ $ [ * + ? | ) é ä) nel percorso dello studio e nel nome del computer o dell’utente. Anche gli spazi sono da evitare.

      Like

  2. I cannot run Salome-Meca 2018 on windows 10. How can I resolve this problem? It runs only 49% then it has a message as below:

    runSalome running on DESKTOP-O6RNCQ0
    Searching for a free port for naming service: 2823 – OK
    Searching Naming Service found in 0.0 seconds
    Searching /Kernel/Session in Naming Service +Warning, no type found for resource “localhost”, using default value “single_machine”
    +++++++++++++++++++++++++++++++++++++++++++th. +th. 000000000749FC20 – Trace ..\..\..\..\KERNEL_SRC\src\NamingService\SALOME_NamingService.cxx [308] : !!!Register(): CORBA::SystemException: unable to contact the naming service
    th. 000000000749FC20 – Trace ..\..\..\..\GUI_SRC\src\Session\Session_ServerThread.cxx [205] : Caught unknown exception.
    ++++++++++++++++++++++++++++++++++++++++t+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++Traceback (most recent call last):
    File “D:\SETUPS\Main\MODULES\KERNEL\RELEASE\KERNEL_INSTALL\bin\salome\runSalome.py”, line 625, in useSalome
    clt = startSalome(args, modules_list, modules_root_dir)
    File “D:\SETUPS\Main\MODULES\KERNEL\RELEASE\KERNEL_INSTALL\bin\salome\runSalome.py”, line 568, in startSalome
    session=clt.waitNS(“/Kernel/Session”,SALOME.Session)
    File “D:\SETUPS\Main\MODULES\KERNEL\RELEASE\KERNEL_INSTALL\bin\salome\orbmodule.py”, line 147, in waitNS
    if count > maxcount : raise RuntimeError, “Impossible de trouver %s” % name
    RuntimeError: Impossible de trouver /Kernel/Session

    — Error during Salome launch —

    Like
