Nastran to Code_Aster: nonlinear gap elements

Code_Aster can really replace in many cases traditional solvers, let’s try with a simple problem. This problem will look into a specific contact type, called CGAP in Nastran™ and unilateral contact (“LIAISON_UNIL”) in Code_Aster. This case is taken from a publicy available example on the internet, but the original source is probably this one, for all due credit.
To read this article one will need some knowledge both in Nastran and in Code_Aster.

1-1502031559210-L

The translation between Nastran and Code_Aster can be made by using the following correspondances :

Nastran keyword Code_Aster keyword
BEGIN DEBUT
SOL 106 + SUBCASE STAT_NON_LINE
DISPLACEMENT=ALL IMPR_RESU(FORMAT=’RESULTAT’)
TIME 600 See “prob30c.export” file, line “A tpmax 600
PARAM LGDISP STAT_NON_LINE(COMPORTEMENT)
NLPARM DEFI_LIST_REEL, DEFI_LIST_INST
PBEAML AFFE_MODELE(MODELISATION=’POU_D_T‘), MACR_CARA_POUTRE, AFFE_CARA_ELEM(POUTRE=_F(SECTION=’GENERALE’)) + AFFE_MATERIAU
CBEAM See “prob30c.mail” file: SEG2 + AFFE_CARA_ELEM(ORIENTATION) + AFFE_CARA_ELEM(POUTRE=_F(GROUPMA))
CGAP See “prob30c.mail” file: POI1 + AFFE_CARA_ELEM(DISCRET) + AFFE_MODELE(MODELISATION=’DIS_TR‘) + DEFI_MATERIAU(ELAS)
PGAP DEFI_CONTACT(FORMULATION=’LIAISON_UNIL’) + AFFE_MATERIAU
MAT1 DEFI_MATERIAU
GRID See “prob30c.mail” file: COOR_3D
SPC1 AFFE_CHAR_CINE
FORCE AFFE_CHAR_MECA(FORCE_NODALE)
ENDDATA FIN

After the calculation, we will find the displacements at nodes and compare them with Nastran results (the contact limit is shown by a single point, label “12”) :

depl_crop

Here is a table of comparison between Nastran and Code_Aster results for this case (Nastran values are taken from the pdf file above) :

Node Nastran Disp Code_Aster Disp Diff %
N2 -0.009780925 -0.00977726747071 0.037%
N3 -0.03698192 -0.0369769401306 0.013%
N4 -0.07929253 -0.0792879790551 0.006%
N5 -0.1344023 -0.13439934532 0.002%
N6 -0.2000008 -0.2 0.0004%
N7 -0.2737623 -0.273762838838 0.0002%
N8 -0.352976 -0.352977844004 0.0005%
N9 -0.4349158 -0.434918932333 0.0007%
N10 -0.5169551 -0.516965540582 0.002%
N11 -0.5989944 -0.59901214883 0.003%

First of all, let’s see the Nastran code (file “prob30c.dat”) for this exemple :

SOL 106
TIME 600
CEND
TITLE = Non-Linear Gap Element with Non-Coincedent Nodes
ECHO = NONE
MAXLINES = 999999999
SUBCASE 1
 NLPARM = 1
 SPC = 1
 LOAD = 1
 DISPLACEMENT=ALL
BEGIN BULK
PARAM AUTOSPC NO
PARAM WTMASS 1.
PARAM LGDISP -1
PARAM,NOCOMPS,-1
NLPARM 1 10 AUTO 5 25 PW NO + A
+ A .001 1.-7
PBEAML 1 1 I + B
+ B 2. 1. 1. .1 .1 .1 YES + C
+ C 1. 2. 1. 1. .1 .1 .1
CBEAM 1 1 1 2 0. 1. 0.
CBEAM 2 1 2 3 0. 1. 0.
CBEAM 3 1 3 4 0. 1. 0.
CBEAM 4 1 4 5 0. 1. 0.
CBEAM 5 1 5 6 0. 1. 0.
CBEAM 6 1 6 7 0. 1. 0.
CBEAM 7 1 7 8 0. 1. 0.
CBEAM 8 1 8 9 0. 1. 0.
CBEAM 9 1 9 10 0. 1. 0.
CBEAM 10 1 10 11 0. 1. 0.
PGAP 2 .2 1.+7
CGAP 100 2 6 12 1. 0. 0.
MAT1 1 1.+7 .3 .101
GRID 1 0. 0. 0.
GRID 2 5. 0. 0.
GRID 3 10. 0. 0.
GRID 4 15. 0. 0.
GRID 5 20. 0. 0.
GRID 6 25. 0. 0.
GRID 7 30. 0. 0.
GRID 8 35. 0. 0.
GRID 9 40. 0. 0.
GRID 10 45. 0. 0.
GRID 11 50. 0. 0.
GRID 12 25. -.2 0.
SPC1 1 123456 1 12
FORCE 1 9 0 50. 0. -1. 0.
ENDDATA

In Code_Aster, you will need to create distinct files for the mesh and the commands and also a mesh file for calculating the section parameters. Let’s start with the main mesh file (file “prob30c.mail”) :

prob30c_crop

TITRE
 prob30c
 Non-Linear Gap Element with Non-Coincedent Nodes
FINSF

COOR_3D
 N1 0.0000000000e+00 0.0000000000e+00 0.0000000000e+00
 N2 5.0000000000e+00 0.0000000000e+00 0.0000000000e+00
 N3 1.0000000000e+01 0.0000000000e+00 0.0000000000e+00
 N4 1.5000000000e+01 0.0000000000e+00 0.0000000000e+00
 N5 2.0000000000e+01 0.0000000000e+00 0.0000000000e+00
 N6 2.5000000000e+01 0.0000000000e+00 0.0000000000e+00
 N7 3.0000000000e+01 0.0000000000e+00 0.0000000000e+00
 N8 3.5000000000e+01 0.0000000000e+00 0.0000000000e+00
 N9 4.0000000000e+01 0.0000000000e+00 0.0000000000e+00
 N10 4.5000000000e+01 0.0000000000e+00 0.0000000000e+00
 N11 5.0000000000e+01 0.0000000000e+00 0.0000000000e+00
 N12 2.5000000000e+01 -2.0000000298e-01 0.0000000000e+00
FINSF

POI1
 V000012 N12
FINSF

SEG2
 E1 N1 N2
 E2 N2 N3
 E3 N3 N4
 E4 N4 N5
 E5 N5 N6
 E6 N6 N7
 E7 N7 N8
 E8 N8 N9
 E9 N9 N10
 E10 N10 N11
FINSF

GROUP_MA NOM = G1
 % Original part : 1
 E1 E10 E2 E3 E4 E5 E6
 E7 E8 E9
FINSF

FIN

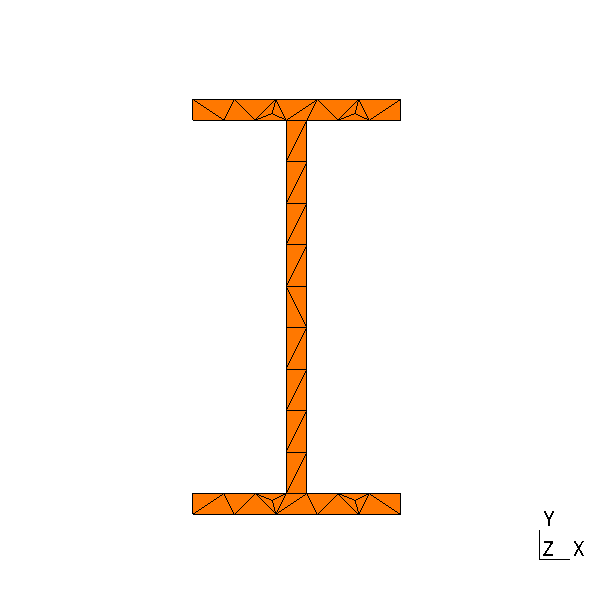

And then, the section mesh file (file “poutre.mail”). This mesh does not exists in the Nastran file, it is needed because Code_Aster does not know anything about I-Beams, so we must provide a mesh for the beam section to calculate section properties :

poutre


 TITRE
DI-19-MARS-2017 13:15:15
 FINSF
 %
 COOR_2D
 N1        1.00000000000000E+00  0.00000000000000E+00
 N2        0.00000000000000E+00  1.11022302462516E-16
 N3        0.00000000000000E+00  1.00000000000000E-01
 N4        4.50000000000000E-01  1.00000000000000E-01
 N5        4.50000000000000E-01  1.90000000000000E+00
 N6        2.22044604925031E-16  1.90000000000000E+00
 N7        2.22044604925031E-16  2.00000000000000E+00
 N8        1.00000000000000E+00  2.00000000000000E+00
 N9        1.00000000000000E+00  1.90000000000000E+00
 N10       5.50000000000000E-01  1.90000000000000E+00
 N11       5.50000000000000E-01  1.00000000000000E-01
 N12       1.00000000000000E+00  1.00000000000000E-01
 N13       8.00000000000000E-01  2.22044604925031E-17
 N14       6.00000000000000E-01  4.44089209850063E-17
 N15       4.00000000000000E-01  6.66133814775094E-17
 N16       2.00000000000000E-01  8.88178419700125E-17
 N17       1.50000000000000E-01  1.00000000000000E-01
 N18       3.00000000000000E-01  1.00000000000000E-01
 N19       4.50000000000000E-01  3.00000000000000E-01
 N20       4.50000000000000E-01  5.00000000000000E-01
 N21       4.50000000000000E-01  7.00000000000000E-01
 N22       4.50000000000000E-01  9.00000000000000E-01
 N23       4.50000000000000E-01  1.10000000000000E+00
 N24       4.50000000000000E-01  1.30000000000000E+00
 N25       4.50000000000000E-01  1.50000000000000E+00
 N26       4.50000000000000E-01  1.70000000000000E+00
 N27       3.00000000000000E-01  1.90000000000000E+00
 N28       1.50000000000000E-01  1.90000000000000E+00
 N29       2.00000000000000E-01  2.00000000000000E+00
 N30       4.00000000000000E-01  2.00000000000000E+00
 N31       6.00000000000000E-01  2.00000000000000E+00
 N32       8.00000000000000E-01  2.00000000000000E+00
 N33       8.50000000000000E-01  1.90000000000000E+00
 N34       7.00000000000000E-01  1.90000000000000E+00
 N35       5.50000000000000E-01  1.70000000000000E+00
 N36       5.50000000000000E-01  1.50000000000000E+00
 N37       5.50000000000000E-01  1.30000000000000E+00
 N38       5.50000000000000E-01  1.10000000000000E+00
 N39       5.50000000000000E-01  9.00000000000000E-01
 N40       5.50000000000000E-01  7.00000000000000E-01
 N41       5.50000000000000E-01  5.00000000000000E-01
 N42       5.50000000000000E-01  3.00000000000000E-01
 N43       7.00000000000000E-01  1.00000000000000E-01
 N44       8.50000000000000E-01  1.00000000000000E-01
 N45       3.82651061570731E-01  6.69924241892496E-02
 N46       3.82651061570732E-01  1.93300757581075E+00
 N47       7.82788561088396E-01  6.69924241892496E-02
 N48       7.82788561088396E-01  1.93300757581075E+00
 FINSF
 %
 SEG2
 M1       N1       N13
 M2       N13      N14
 M3       N14      N15
 M4       N15      N16
 M5       N16      N2
 M6       N2       N3
 M7       N3       N17
 M8       N17      N18
 M9       N18      N4
 M10      N4       N19
 M11      N19      N20
 M12      N20      N21
 M13      N21      N22
 M14      N22      N23
 M15      N23      N24
 M16      N24      N25
 M17      N25      N26
 M18      N26      N5
 M19      N5       N27
 M20      N27      N28
 M21      N28      N6
 M22      N6       N7
 M23      N7       N29
 M24      N29      N30
 M25      N30      N31
 M26      N31      N32
 M27      N32      N8
 M28      N8       N9
 M29      N9       N33
 M30      N33      N34
 M31      N34      N10
 M32      N10      N35
 M33      N35      N36
 M34      N36      N37
 M35      N37      N38
 M36      N38      N39
 M37      N39      N40
 M38      N40      N41
 M39      N41      N42
 M40      N42      N11
 M41      N11      N43
 M42      N43      N44
 M43      N44      N12
 M44      N12      N1
 FINSF
 %
 TRIA3
 M45      N2       N17      N16
 M46      N16      N18      N15
 M47      N45      N15      N18
 M48      N16      N17      N18
 M49      N17      N2       N3
 M50      N41      N42      N19
 M51      N19      N20      N41
 M52      N12      N1       N44
 M53      N13      N44      N1
 M54      N47      N44      N13
 M55      N47      N43      N44
 M56      N42      N11      N4
 M57      N4       N19      N42
 M58      N45      N4       N15
 M59      N45      N18      N4
 M60      N15      N4       N11
 M61      N11      N14      N15
 M62      N14      N43      N13
 M63      N47      N13      N43
 M64      N14      N11      N43
 M65      N29      N27      N28
 M66      N27      N29      N30
 M67      N46      N5       N27
 M68      N29      N28      N7
 M69      N28      N6       N7
 M70      N36      N37      N24
 M71      N24      N25      N36
 M72      N8       N9       N33
 M73      N48      N34      N32
 M74      N8       N33      N32
 M75      N48      N32      N33
 M76      N46      N27      N30
 M77      N5       N30      N31
 M78      N35      N36      N25
 M79      N25      N26      N35
 M80      N26      N5       N10
 M81      N46      N30      N5
 M82      N10      N35      N26
 M83      N31      N10      N5
 M84      N48      N33      N34
 M85      N31      N34      N10
 M86      N31      N32      N34
 M87      N23      N37      N38
 M88      N37      N23      N24
 M89      N22      N39      N21
 M90      N40      N41      N20
 M91      N20      N21      N40
 M92      N21      N39      N40
 M93      N38      N39      N23
 M94      N39      N22      N23
 FINSF
 %
 GROUP_MA
 BORDER
 M1       M2       M3       M4       M5       M6       M7
 M8       M9       M10      M11      M12      M13      M14
 M15      M16      M17      M18      M19      M20      M21
 M22      M23      M24      M25      M26      M27      M28
 M29      M30      M31      M32      M33      M34      M35
 M36      M37      M38      M39      M40      M41      M42
 M43      M44
 FINSF
 %
 FIN

Finally, the command file (file “prob30c.comm”) :


# prob30c
# Non-Linear Gap Element with Non-Coincedent Nodes

DEBUT(PAR_LOT='NON',
      ERREUR=_F(ERREUR_F='ABORT',),
      IGNORE_ALARM=('SUPERVIS_1','MODELISA4_6','MODELISA4_8',),);

MAIL=LIRE_MAILLAGE(FORMAT='ASTER',
                   VERI_MAIL=_F(VERIF='OUI',),);

MODMECA=AFFE_MODELE(MAILLAGE=MAIL,
                    AFFE=(_F(MAILLE='V000012',
                             PHENOMENE='MECANIQUE',
                             MODELISATION='DIS_TR',),
                          _F(GROUP_MA='G1',
                             PHENOMENE='MECANIQUE',
                             MODELISATION='POU_D_T',),),);

CNS00001=DEFI_CONSTANTE(VALE=0.2,);

CNS00002=DEFI_CONSTANTE(VALE=0.0,);

CNS00003=DEFI_CONSTANTE(VALE=-1.0,);

LST00001=DEFI_LIST_REEL(DEBUT=0.0,
                        INTERVALLE=_F(JUSQU_A=1.0,
                                      NOMBRE=10,),);

FAUXMAT=DEFI_MATERIAU(ELAS=_F(E=1e-10,
                              NU=0.0,
                              RHO=0.0,),);

MAT00001=DEFI_MATERIAU(ELAS=_F(E=10000000.0,
                               NU=0.3,
                               RHO=0.101,),);

CHMAT=AFFE_MATERIAU(MAILLAGE=MAIL,
                    AFFE=(_F(MAILLE='V000012',
                             MATER=FAUXMAT,),
                          _F(GROUP_MA='G1',
                             MATER=MAT00001,),),);

CINE1=AFFE_CHAR_CINE(MODELE=MODMECA,
                     MECA_IMPO=_F(NOEUD=('N12','N1',),
                                  DX=0.0,
                                  DY=0.0,
                                  DZ=0.0,
                                  DRX=0.0,
                                  DRY=0.0,
                                  DRZ=0.0,),);

CHCONT=DEFI_CONTACT(MODELE=MODMECA,
                    FORMULATION='LIAISON_UNIL',
                    ZONE=_F(NOEUD='N6',
                            NOM_CMP=('DX','DY',),
                            COEF_IMPO=CNS00001,
                            COEF_MULT=(CNS00002,CNS00003,),),);

CHARGE1=AFFE_CHAR_MECA(MODELE=MODMECA,
                       FORCE_NODALE=_F(NOEUD='N9',
                                       FY=-50.0,),);

SECT=LIRE_MAILLAGE(UNITE=21,
                   FORMAT='ASTER',
                   VERI_MAIL=_F(VERIF='OUI',),);

TB_POU=MACR_CARA_POUTRE(MAILLAGE=SECT,
                       ORIG_INER=(0.0,0.0,),
                       INFO=2,
                       GROUP_MA_BORD='BORDER',
                       NOEUD='N23',TABLE_CARA='OUI',NOM='ibeam',);

CAEL=AFFE_CARA_ELEM(MODELE=MODMECA,
                    POUTRE=_F(SECTION='GENERALE',
                              GROUP_MA='G1',TABLE_CARA=TB_POU,NOM_SEC='ibeam',),
                    DISCRET=_F(CARA='K_TR_D_N',
                               MAILLE='V000012',
                               VALE=(0.0,0.0,0.0,0.0,0.0,0.0,),),
                    ORIENTATION=_F(CARA='VECT_Y',
                                   GROUP_MA='G1',
                                   VALE=(0.0,1.0,0.0,),),);

LAUTO1=DEFI_LIST_INST(DEFI_LIST=_F(METHODE='AUTO',
                                   LIST_INST=LST00001,),);

RESU1=STAT_NON_LINE(MODELE=MODMECA,
                    CHAM_MATER=CHMAT,
                    CARA_ELEM=CAEL,
                    EXCIT=(_F(CHARGE=CHARGE1,),
                           _F(CHARGE=CINE1,),),
                    CONTACT=CHCONT,
                    COMPORTEMENT=(_F(MAILLE='V000012',
                                     RELATION='ELAS',),
                                  _F(GROUP_MA='G1',
                                     RELATION='ELAS',),),
                    INCREMENT=_F(LIST_INST=LAUTO1,),
                    NEWTON=_F(REAC_ITER=1,),
                    SOLVEUR=_F(METHODE='MUMPS',
                               NPREC=8,),
                    ARCHIVAGE=_F(LIST_INST=LST00001,),);

RESU1=CALC_CHAMP(reuse =RESU1,
                 RESULTAT=RESU1,
                 FORCE='REAC_NODA',);

TEST_RESU(RESU=(
                _F(RESULTAT=RESU1,
                   INST=1.0,
                   NOM_CHAM='DEPL',
                   NOM_CMP='DY',
                   NOEUD='N11',
                   TOLE_MACHINE=0.05,
                   CRITERE='RELATIF',
                   VALE_REFE=-0.5989944,
                   PRECISION=0.05,
                   REFERENCE='SOURCE_EXTERNE',
                   VALE_CALC=-0.5989944,),),);

IMPR_RESU(FORMAT='RESULTAT',
          RESU=_F(RESULTAT=RESU1,
                  NOM_CHAM='DEPL',
                  VALE_MAX='OUI',
                  VALE_MIN='OUI',),);

IMPR_RESU(FORMAT='MED',
          UNITE=80,
          RESU=_F(RESULTAT=RESU1,
                  NOM_CHAM='DEPL',),);

FIN(FORMAT_HDF='OUI',);

You will also need a file to keep everything together ( file “prob30c.export”). This file is the one needed to start the calculation on command line (“as_run prob30c.export”) :


P actions make_etude
P memjob 262144
P memory_limit 256.0
P mode interactif
P mpi_nbcpu 1
P mpi_nbnoeud 1
P ncpus 1
P testlist verification sequential
P time_limit 60.0
P tpsjob 2
P version testing
A memjeveux 32.0
A tpmax 60.0
F comm prob30c.comm D 1
F mail prob30c.mail D 20
F mail poutre.mail D 21
F mess prob30c.mess R 6
F resu prob30c.resu R 8
F rmed prob30c.rmed R 81

One thought on “Nastran to Code_Aster: nonlinear gap elements

Leave a Reply

Fill in your details below or click an icon to log in:

WordPress.com Logo

You are commenting using your WordPress.com account. Log Out / Change )

Twitter picture

You are commenting using your Twitter account. Log Out / Change )

Facebook photo

You are commenting using your Facebook account. Log Out / Change )

Google+ photo

You are commenting using your Google+ account. Log Out / Change )

Connecting to %s
